The GitOps Model

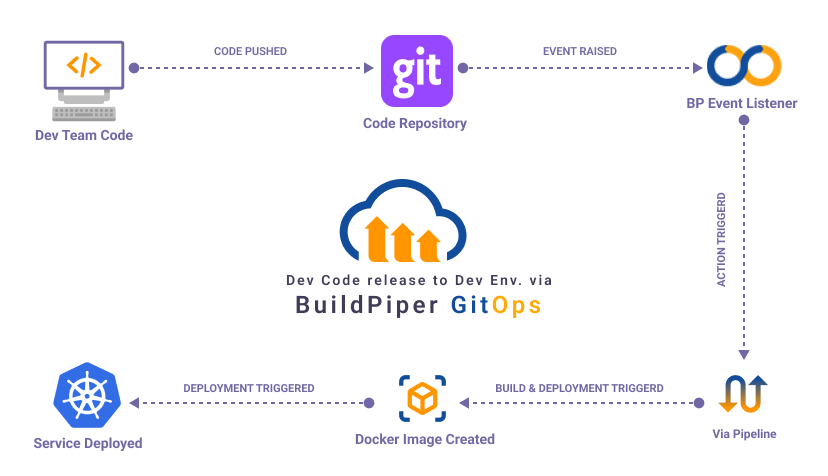

The GitOps model is dependent on

  • Git Events
  • Webhooks
  • Listeners
  • Actions

Docs Version Dropdown

Git Events#

An event is something that happens in a Git repo. Whenever there are changes occurring in the Git repository - Git generates events. This event triggers an already configured webhook URL.

For instance,

  • Tag events are triggered when you create or delete tags in the repository.
  • Similarly, creating a pull request is an event in Git where a contributor asks a maintainer of a Git repository to review code they want to merge into a project.

Refer to the doc to know more about GitHub event types.

Webhooks#

Webhooks are custom HTTP callbacks that you define. They are usually triggered by an event, such as pushing code to a repository. When the event occurs, the source app makes an HTTP request to the URL configured for the webhook.

Webhooks provide a way for notifications to be delivered to an external web server whenever certain actions occur on a repository or organization.

Read more about webhooks here in this doc!

Listeners#

Listeners are used to observe events occurring within the Git repo and then perform the specified actions. When an event triggers a webhook request, a message to the specified URL is sent. At the URL endpoint, a webhook listener receives the message and then executes actions according to the message's content.

Actions#

Actions are the tasks which a listener will trigger on receiving an event.

For instance, in the BuildPiper system one can configure the following actions

  • Trigger a build for an environment of a service.
  • Trigger a Deployment for an environment of a service.
  • Trigger a Pipeline (for performing CI or CD or any task set).
